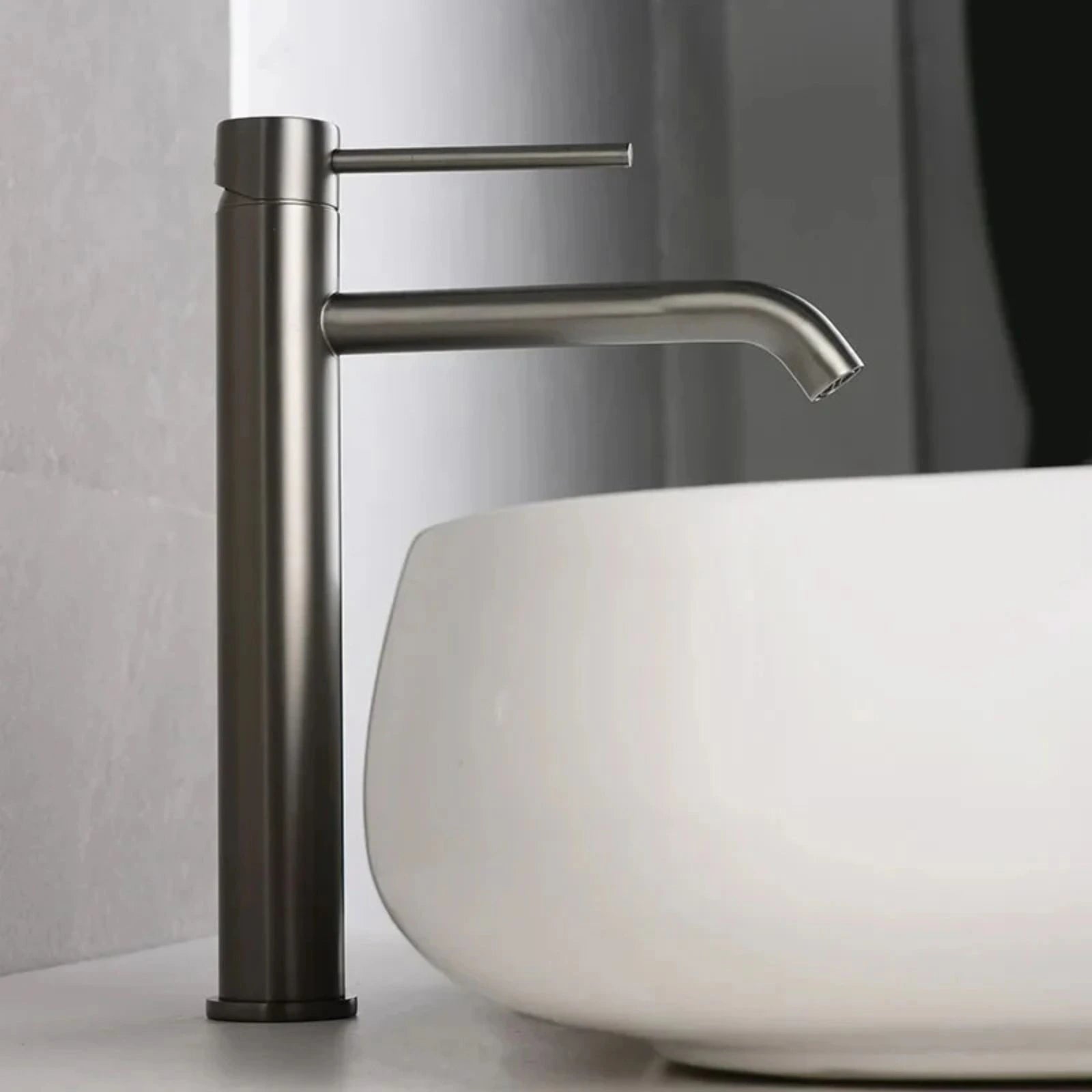

HOW TO RECOGNIZE A FAUCET WITH INTERNAL THREAD (FEMALE)

  • The thread is located inside the faucet tip.
  • The end of the tap is smooth on the outside.
  • Requires an adapter with an external (male) thread.

Tap A - The internal tap

  1. Unscrew and remove the nut from the Skincare Filter.

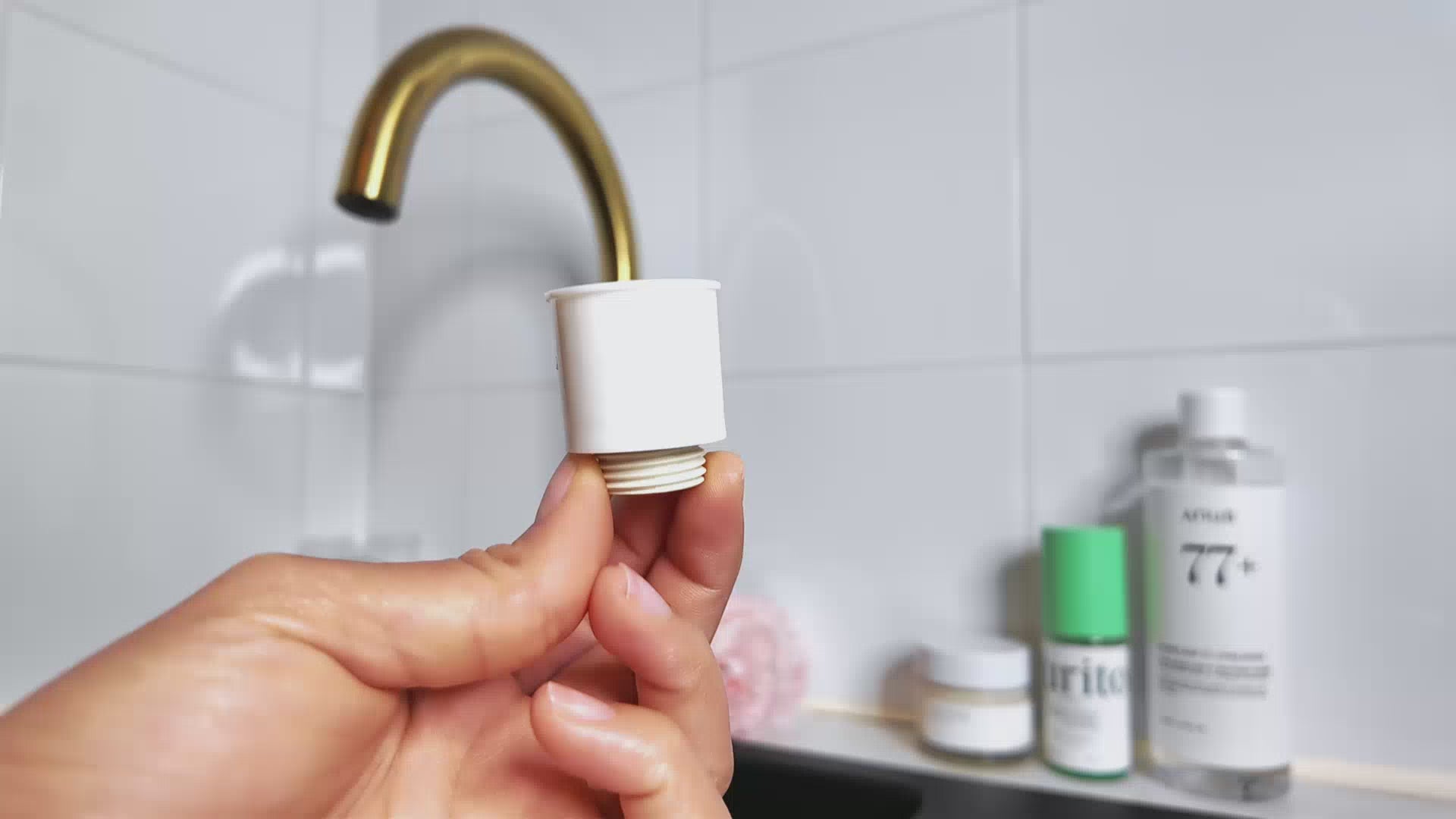

  2. Unscrew and remove the bubbler from your water tap using an adjustable wrench and then select the most appropriate adapter for your water tap. The diameter of the adapter must be the same as the bubbler.

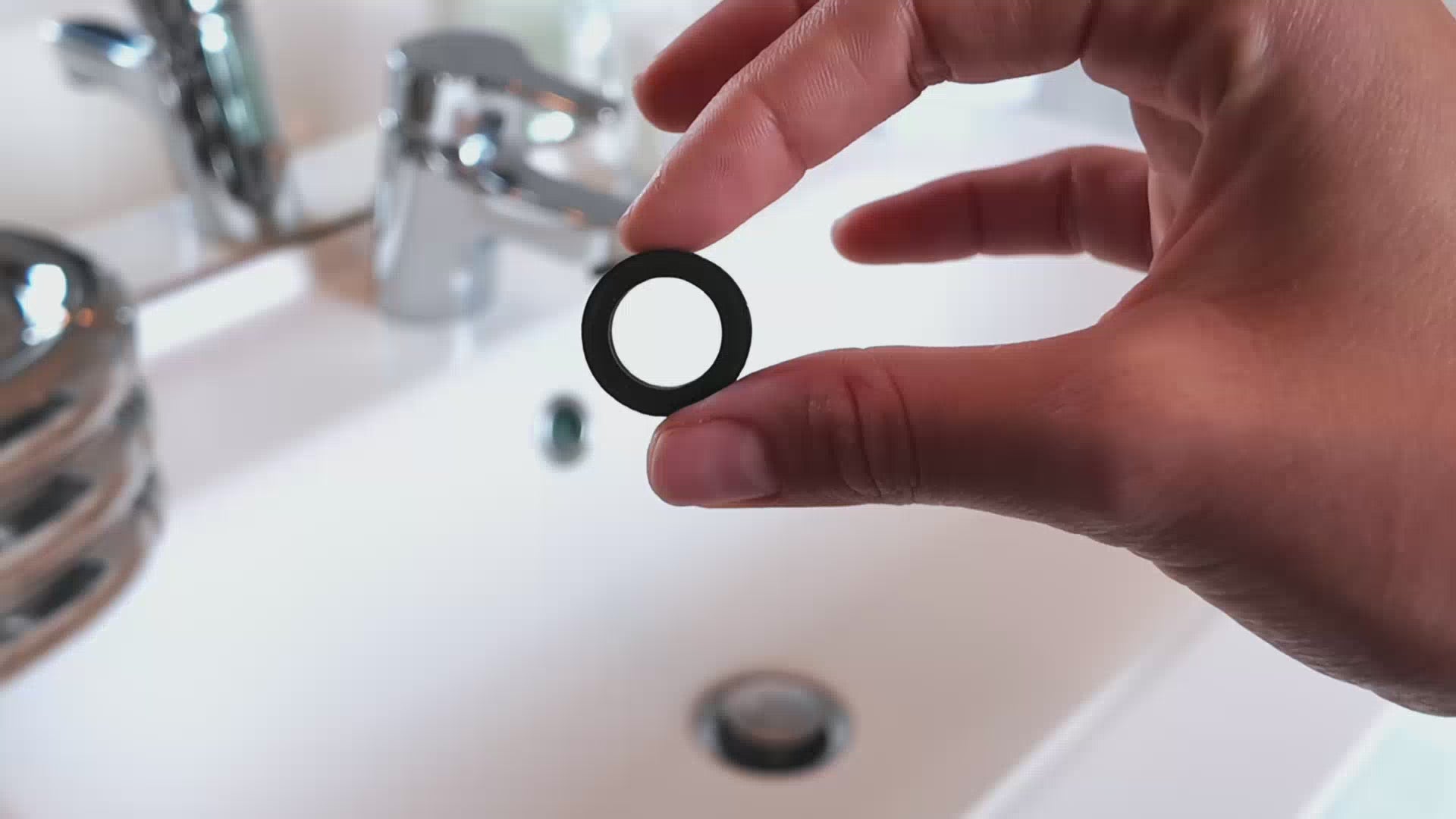

  3. Take the nut previously removed from the Skincare Filter (smooth part upwards), place it on the selected adapter (screwed part upwards) and install one of the supplied gaskets suitable for the diameter of the adapter inside.
  4. At the removed bubbler, screw the selected adapter firmly to the right using the supplied wrench or a coin.
  5. Take the Skincare Filter and screw it to the left onto the adapter installed on your faucet.

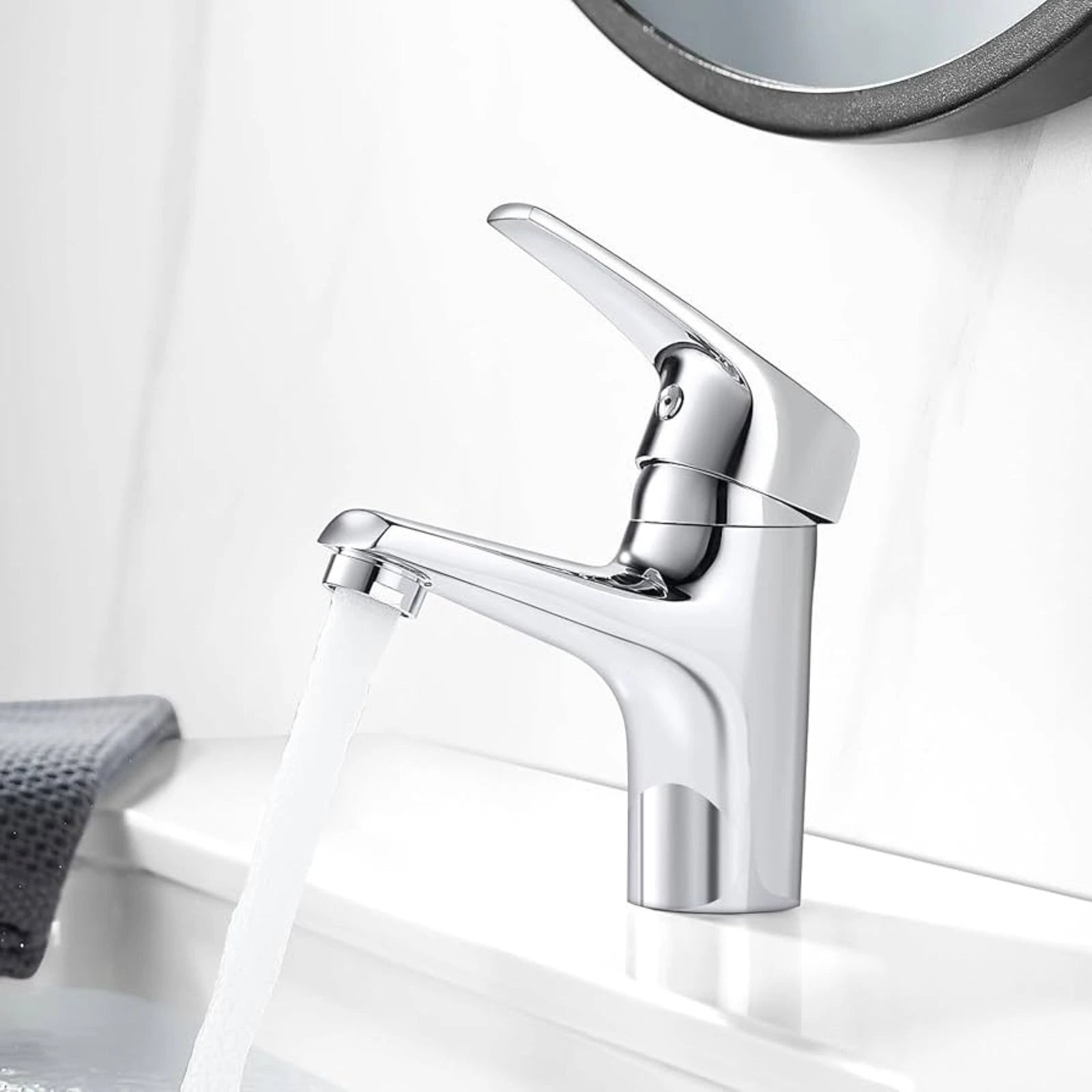

HOW TO RECOGNIZE A TAP WITH EXTERNAL THREAD (MALE)

  • The thread is visible on the outside of the faucet.
  • It allows you to directly screw in accessories with an internal thread.

INSTALLING THE SKINCARE FILTER WATER FILTER ON AN INTERNAL FAUCET

Installing the Skincare Filter on an internal faucet is exactly the same as installing it on an external faucet.

Tap B - The external tap

  1. Unscrew and remove the nut from the Skincare Filter.
  2. Unscrew and remove the bubbler from your water tap using an adjustable wrench and then select the most appropriate adapter for your water tap. The diameter of the adapter must be the same as the bubbler.
  3. Take the nut previously removed from the Skincare Filter (smooth part upwards), place it on the selected adapter (screwed part upwards) and install one of the supplied gaskets suitable for the diameter of the adapter inside.
  4. At the removed bubbler, screw the selected adapter firmly to the right using the supplied wrench or a coin.
  5. Take the Skincare Filter and screw it to the left onto the adapter installed on your faucet.

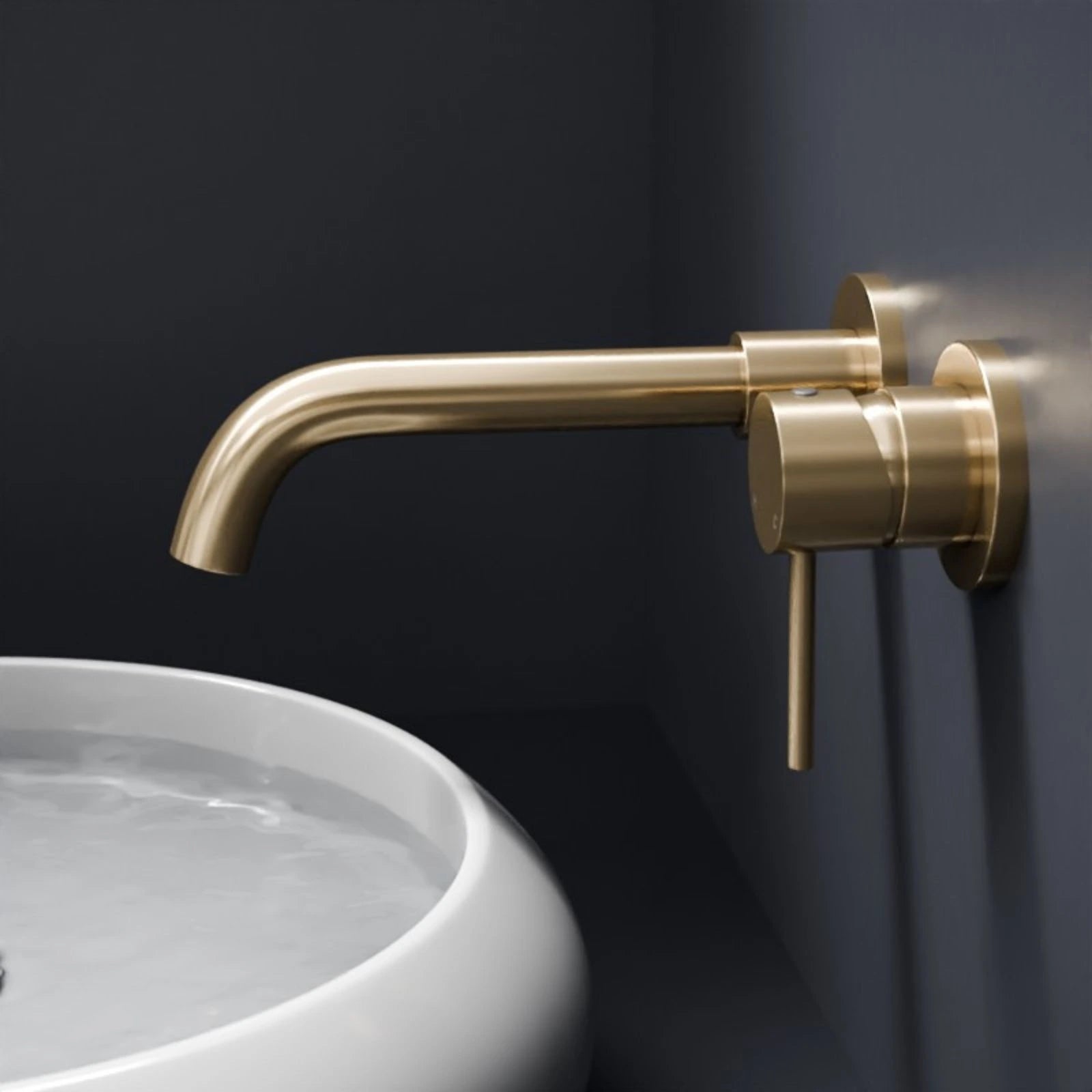

HOW TO RECOGNIZE A UNIVERSAL TAP

  • NO THREADS OR BUBBLER (TIP THAT UNSCREWS FROM THE FAUCET) VISIBLE.

INSTALLING THE SKINCARE FILTER WATER FILTER ON A UNIVERSAL FAUCET

Faucet C - The universal faucet

  1. Unscrew and remove the nut from the Skincare Filter.
  2. Take your universal connector, remove the internal seals according to the diameter of your faucet and then fit the universal connector onto the water outlet of your faucet. Then place the tightening belt on the connector and tighten it firmly.
  3. Take the nut previously removed from the Skincare Filter (smooth part upwards), place it on the selected adapter (screw part upwards) and install one of the supplied gaskets suitable for the diameter of the adapter inside.
  4. At the removed bubbler, screw the selected adapter firmly to the right using the supplied wrench or a coin.
  5. Take the Skincare Filter and screw it to the left onto the adapter installed on your faucet.

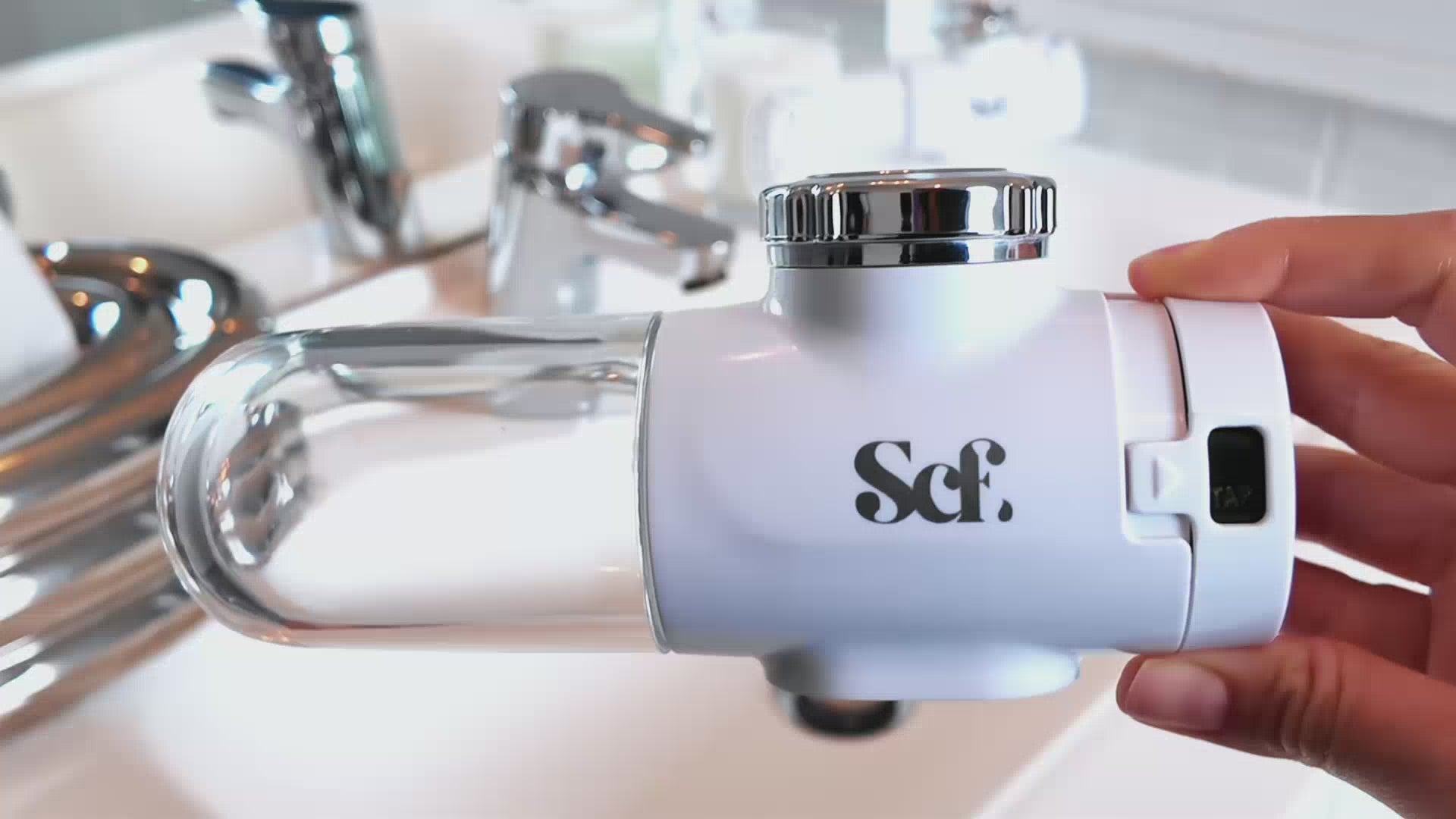

REPLACE THE FILTER CARTRIDGE

Replace the filter cartridge

  1. Unscrew the transparent part of the Skincare Filter to the left and then REMOVE the expired filter cartridge. Once this is done, you can replace it with a new filter cartridge.
  2. Replace the transparent part of the Skincare Filter and turn it to the right.
  3. Place the Skincare Filter in “PURE” mode and let the water run for 10 seconds: you can now enjoy filtered water to take care of your skin!

INSTRUCTION MANUAL IN PDF FORMAT

SKINCARE FILTER INSTRUCTION.PDF
